Descriptions

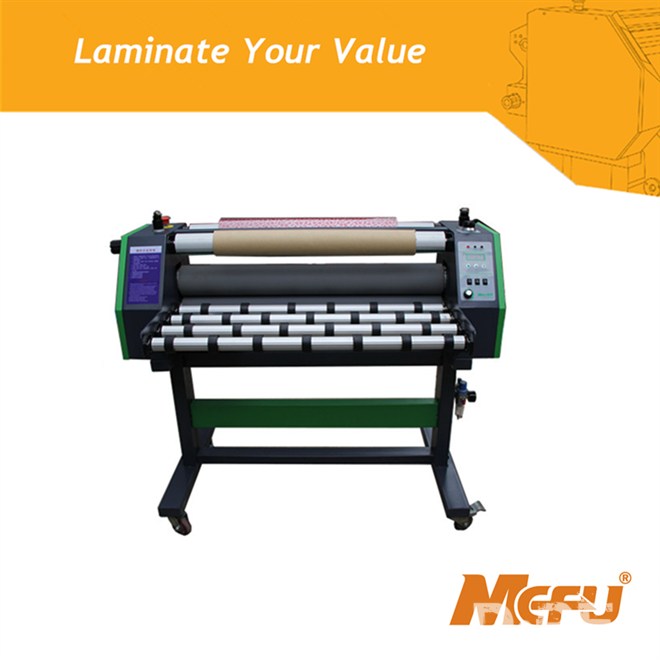

MF850-B3 has a wide range of application, specially for building and decoration industries. This new flatbed laminator is really a good helper whom want to mount films onto Glass, HDF, MDF, PVC Boards, A-Alum plates, with a temperature up to 120℃(248°F).
This laminator is also aviable in MF1350-B2 and MF1950-B2.
Parameter
|
Model
|
MF850-B3
|
|
Brand
|
Mefu
|
|
Max width
|
850mm
|
|
Speed
|
0m/s-6m/s
|
|
Laminating type
|
Hot and cold
|
|
Heating method
|
Heated top roller
|
|
Diameter of upper roller
|
130mm
|
|
Max thickness
|
25mm
|
|
Warm up time
|
10-15 min
|
|
Max temp
|
120℃
|
|
Fixed Volt
|
AC220V-240v 50HZ-60HZ
|
|
Fixed power
|
1800W
|
|
Fixed current
|
12A
|
|
Motor power
|
120W
|
|
Reverse function
|
Yes
|
|
Size
|
770×1220×1100mm
|
|
N.W.
|
120KG
|
*An air pumper is needed.
Features
Improve quality and yields
High efficiency and low cost
Long serve life and low maintenance cost
Wide range application
Configuration
Non-contactable infrared temperature control device
Air cylinder
Anti-glue silicon rollers
Adaptable pressure device
Foot switch
